🔄 Laravel Queue Implementation

📋 Overview​

The school creation process in e-School SaaS involves several time-consuming operations that are now handled efficiently through Laravel's queue system, improving both user experience and system performance.

⚙️ Key Operations​

  • 🗄️ Creating a new database for each school
  • 🔄 Running database migrations
  • 👥 Setting up default roles and permissions
  • 📝 Inserting initial data and settings
  • 📧 Sending welcome emails

⭐ Benefits​

  • ⚡ Immediate user interface response
  • 🚫 No blocking operations
  • ⏱️ Background processing (2-3 minutes)

🏗️ Architecture​

📦 Job Classes​

SetupSchoolDatabase (app/Jobs/SetupSchoolDatabase.php)

  • 🎯 Manages database creation and migrations
  • 📊 Updates school status automatically
  • 📨 Handles welcome email dispatch

🔧 Setup Instructions​

🎯 Option 1: aapanel Control Panel (Recommended)​

If you are using aapanel control panel, you can directly install supervisor from the app store and configure Laravel queue from there. This is our recommended option for aapanel users.

📱 Install Supervisor from App Store​

  1. Open your aapanel control panel
  2. Navigate to the App Store section
  3. Search for Supervisor
  4. Click Install to add it to your system

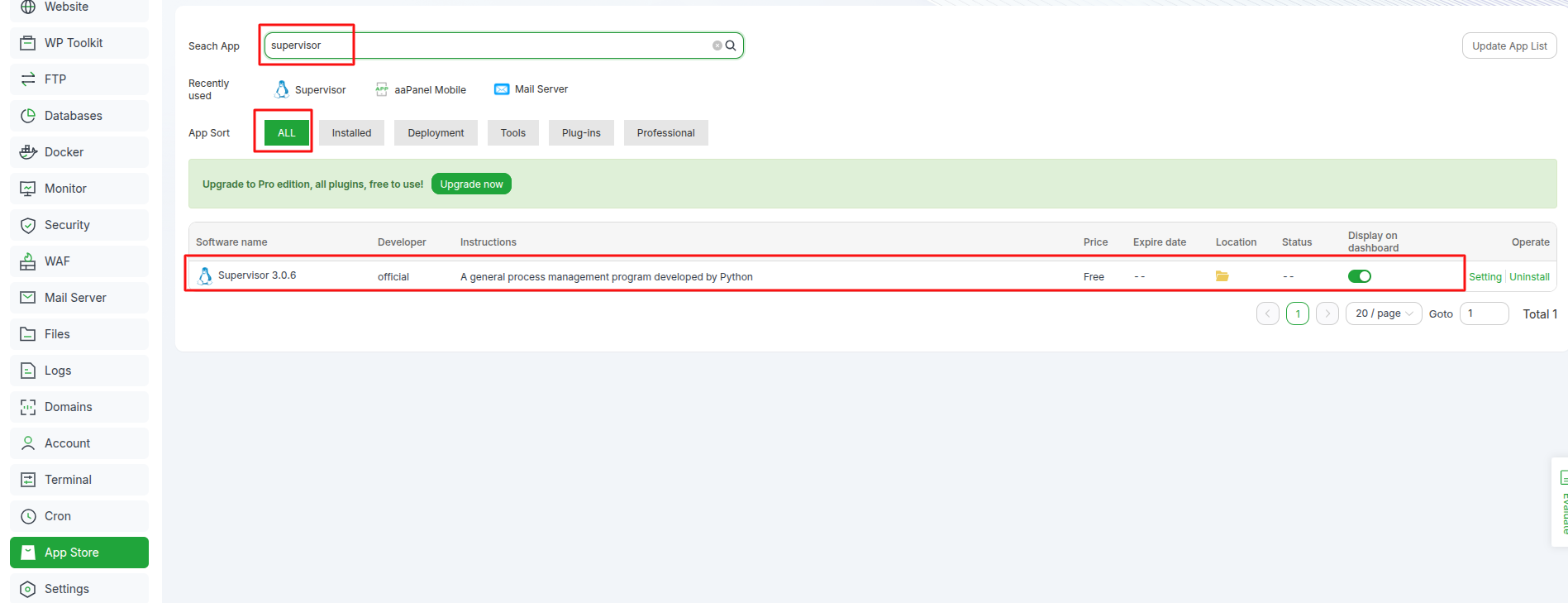

Install Supervisor from App Store

⚙️ Configure Laravel Queue Worker​

After installing supervisor, configure your Laravel queue worker:

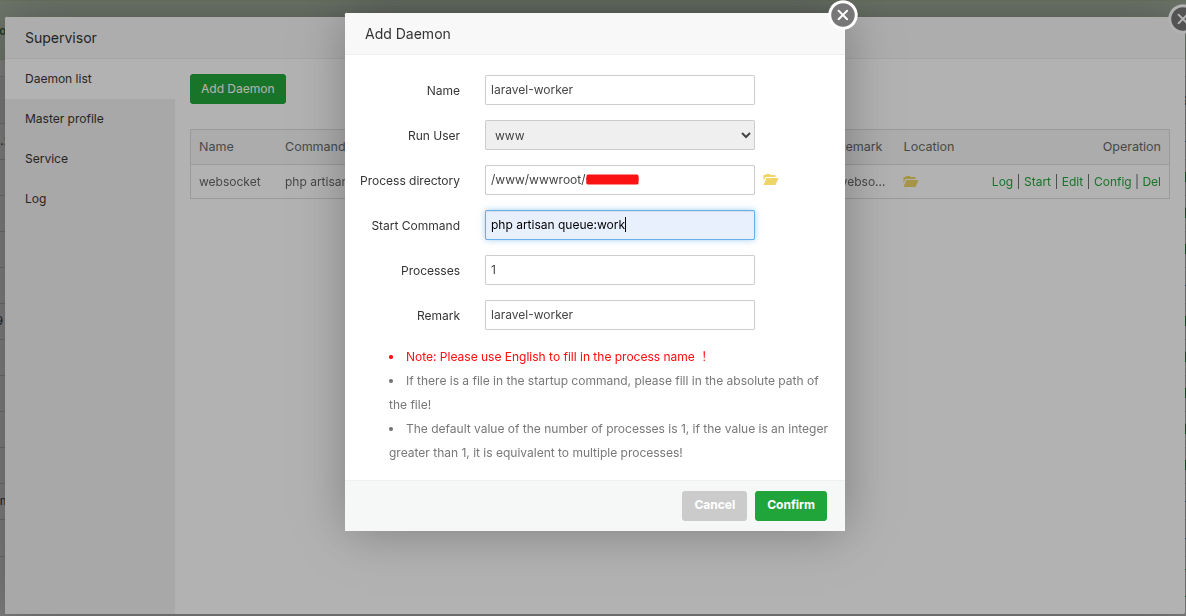

Configure Laravel Queue Worker

✅ Benefits of aapanel Method​

  • 🚀 Easy Installation: One-click installation from app store
  • 🎛️ User-Friendly Interface: Graphical configuration options
  • 🔧 Integrated Management: Centralized control panel access
  • 📊 Real-time Monitoring: Built-in status monitoring
  • 🛠️ Simplified Configuration: No manual command line setup required

🖥️ Option 2: Manual Installation (Traditional Method)​

If you prefer manual installation or are not using aapanel, follow the traditional setup method below.

1️⃣ Queue Configuration​

Update .env file with queue driver:

QUEUE_CONNECTION=database

2️⃣ Queue Worker Setup​

Start processing jobs:

# Process all queues
php artisan queue:work

# For production (with supervisor)
# See configuration below

📊 School Status Codes​

  • 0️⃣ Pending/Setup in progress
  • 1️⃣ Setup completed successfully

🚀 Production Deployment​

🔧 Supervisor Configuration​

Note: If Supervisor is already installed on your server, you can skip steps 1️⃣ below and proceed directly to creating the configuration file.

1️⃣ Install Required Packages​

Open the Terminal from an SSH Connection:

sudo apt-get update
sudo apt-get install supervisor

2️⃣ Create Configuration File​

sudo nano /etc/supervisor/conf.d/laravel-worker.conf

3️⃣ Add Configuration​

Add the following content to the configuration file:

[program:laravel-worker]
process_name=%(program_name)s_%(process_num)02d
command=php /path/to/your/project/artisan queue:work
autostart=true
autorestart=true
stopasgroup=true
killasgroup=true
user=www-data
numprocs=2
redirect_stderr=true
stdout_logfile=/path/to/your/project/storage/logs/worker.log
stopwaitsecs=3600

4️⃣ Update Supervisor​

sudo supervisorctl reread
sudo supervisorctl update

5️⃣ Start WebSocket Service​

sudo supervisorctl start laravel-worker

6️⃣ Check Status​

sudo supervisorctl status

⚡ Performance Benefits​

  1. 🎯 Enhanced User Experience

    • Instant response to requests
    • No waiting time for users

  2. 💪 System Efficiency

    • Non-blocking operations
    • Better resource utilization

  3. 📈 Scalability

    • Multiple concurrent processes
    • Efficient resource management

  4. 🔄 Reliability

    • Automatic retry mechanism
    • Failed job handling

🔍 Troubleshooting Guide​

❌ Common Issues​

  1. 🚫 Jobs Not Processing

    • ✅ Verify queue workers are running
    • ✅ Check queue driver configuration
    • ✅ Inspect failed_jobs table

  2. ⚠️ School Setup Failures

    • 📝 Review error logs
    • 🔑 Check database permissions
    • 🔄 Use retry commands for failed jobs

  3. 📧 Email Issues

    • ⚙️ Verify email configuration
    • 🔒 Check SMTP settings
    • 📋 Review email logs

🔒 Security Guidelines​

  1. 🗄️ Database Security

    • ✅ Proper queue worker permissions
    • ✅ Restricted database access

  2. 📁 File System

    • ✅ Correct storage permissions
    • ✅ Secure log directories

  3. 🔐 Environment Security

    • ✅ Protected configuration values
    • ✅ Secure production settings
