WhatsApp Business API Integration — User & Administrator Guide​

Welcome to the comprehensive user guide for the WhatsApp Integration module in the School Management System (eSchool SaaS). This guide covers configuration, Meta Cloud API requirements, automatic and manual notification templates, bulk messaging, scheduling, external contact management, troubleshooting, and background process requirements.

Meta WhatsApp Credentials & Templates

For a detailed, step-by-step guide on how to create a Meta Developer account, configure the WhatsApp Business API, generate credentials, and create message templates, please refer to the dedicated Meta WhatsApp Credentials Documentation.

Table of Contents​

  1. Overview
  2. Meta Developer Account & Required Templates
  3. School Administrator Setup & Configuration
  4. Automatic System Templates (Event-Driven)
  5. Manual Templates & Custom Bulk Messaging
  6. External Contacts Directory & CSV Import
  7. Scheduled & Recurring Messages
  8. Message Logs & Retry Mechanism
  9. Server & Cron Configuration
  10. Troubleshooting & Meta Error Codes

1. Overview​

The WhatsApp Integration module empowers schools to communicate directly with parents, students, teachers, staff, and external contacts (alumni, prospective leads) via the official Meta WhatsApp Business Cloud API.

Key Highlights​

  • Multi-Tenant Architecture: Each school operates independently using its own Meta WhatsApp Business Account credentials and phone number.
  • Automatic Event Triggers: Instant alerts for fee receipts (with auto-attached PDF invoices), fee due reminders, student absent notifications, exam schedules, exam results, new assignments, holiday announcements, staff leave approvals, and admission welcome messages.
  • Smart Meta Relay System: Eliminates the need to submit every custom message text to Meta for manual approval. A set of 3 Meta Relay Templates allows the school panel to send dynamic text, images, and documents freely while remaining fully compliant with Meta’s 24-hour messaging window policies.
  • Bulk Messaging & Scheduling: Broadcast custom messages to targeted user roles or CSV-imported lists immediately or schedule them for single, weekly, or monthly automated execution.
  • Delivery Status Logging & Retry: Automated log management for sent/failed messages with 1-click retry mechanism.
  • Meta Insights & Cost Monitoring: Track Meta messaging tier limits, quality rating, and estimated monthly billing directly from the dashboard.

2. Meta Developer Account & Required Templates​

To use WhatsApp messaging, your school (or organization) must create a Meta Developer App connected to a Meta WhatsApp Business Account (WBA).

Prerequisites from Meta​

  1. A Meta Developer Account at developers.facebook.com.
  2. A WhatsApp Business Account (WBA).
  3. A verified Phone Number ID added to your WhatsApp Business Account.
  4. A System User Permanent Access Token (with whatsapp_business_messaging and whatsapp_business_management permissions).

Required Meta Templates (Meta Cloud Console)​

Meta restricts business-initiated messages outside an active 24-hour customer service window to pre-approved templates under the Utility category.

To support dynamic system messages and custom school broadcasts without requiring approval for every minor text edit, you MUST create the following 3 Meta Templates in your Meta WhatsApp Manager before configuring the school panel:

Template 1: Normal Text Messages (Text Relay)​

  • Template Name: school_message (or any lowercase name using a-z, 0-9, and underscores)
  • Category: Utility
  • Language: English (US) (en_US) or your preferred language code
  • Header: None (Select None)
  • Body:
Hello, you have a new message from your school:

{{1}}

Thank you.
  • Footer: (Optional) e.g., School Communication Portal
  • Buttons: None

Template 2: Document Attachments (Document Relay)​

  • Template Name: school_message_document
  • Category: Utility
  • Language: English (US) (en_US)
  • Header: Select Document (Upload a sample PDF during creation)
  • Body:
Hello,

{{1}}

Please find the attached document for your reference.
  • Footer: (Optional)
  • Buttons: None

Template 3: Image Attachments (Image Relay)​

  • Template Name: school_message_image
  • Category: Utility
  • Language: English (US) (en_US)
  • Header: Select Image (Upload a sample JPG/PNG image during creation)
  • Body:
Hello,

{{1}}

Please find the attached image for your reference.
  • Footer: (Optional)
  • Buttons: None

How the Meta Relay System Works​

┌─────────────────────────┐       ┌──────────────────────────┐       ┌────────────────────────┐
│  School Admin Panel     │       │ Meta Utility Template    │       │ Recipient's WhatsApp   │
│  (Custom Body Text &    │ ────> │ Parameter {{1}}          │ ────> │ "Hello, you have a     │
│   Dynamic Variables)    │       │ (Pre-approved by Meta)   │       │  new message: [...]"   │
└─────────────────────────┘       └──────────────────────────┘       └────────────────────────┘

When sending any message (automatic or bulk), the system renders all variables (e.g., {{student_name}}, {{amount}}) locally and passes the final message content as parameter {{1}} to the corresponding Meta Relay Template. This delivers 100% dynamic messaging with guaranteed Meta compliance.

3. School Administrator Setup & Configuration​

Once your Meta credentials and templates are ready, log in to the School Management System as a School Admin and navigate to:

WhatsApp Integration (Sidebar Menu) -> Setup Tab

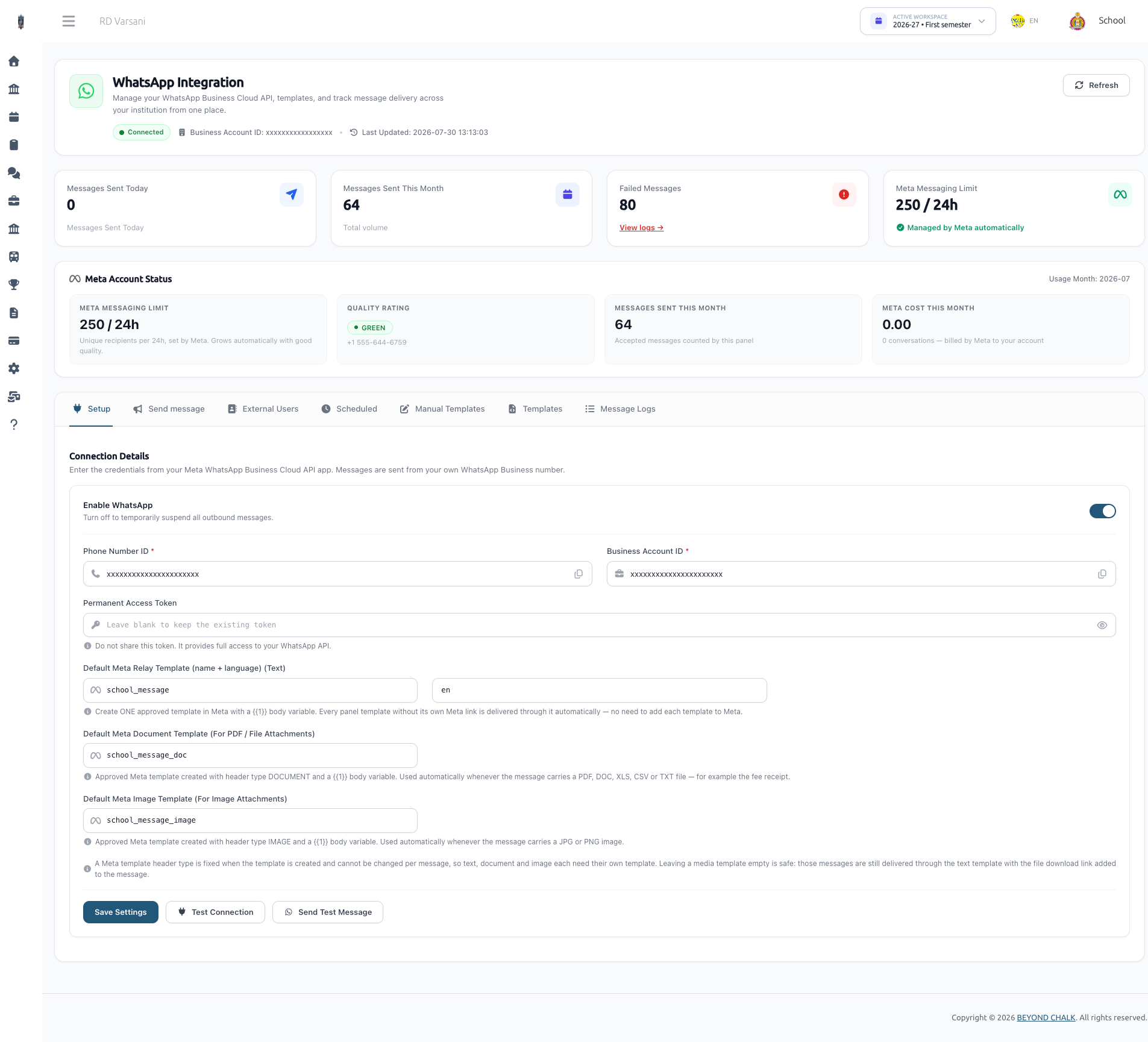

WhatsApp Setup Configuration

Step 1: Credentials & Basic Configuration​

Field NameDescriptionExample Value
Enable WhatsAppMaster toggle to turn WhatsApp notifications ON/OFF for your school.Active (Checked)
Phone Number IDUnique Phone ID generated in Meta Developer Console under WhatsApp -> API Setup.104567890123456
Business Account IDWhatsApp Business Account ID found in Meta Business Manager.109876543210987
Permanent Access TokenSystem User Permanent Token generated from Business Manager.EAAG...
Default Meta Relay Template (Text)Name of Meta Template 1 created above.school_message
Default Meta LanguageMeta language code corresponding to your Meta templates.en_US or en
Default Meta Document TemplateName of Meta Template 2 (Document header).school_message_document
Default Meta Image TemplateName of Meta Template 3 (Image header).school_message_image

Step 2: Verify & Test Connection​

  1. Click Save Settings. The system automatically verifies API access.
  2. Click Test Connection. A green success notification confirms active communication with Meta.
  3. Click Send Test Message, enter your personal WhatsApp mobile number in international format (e.g., 919876543210), and verify receipt.

4. Automatic System Templates (Event-Driven)​

The system includes pre-configured automatic templates that trigger instantly upon key school actions. School Admins can enable, disable, or edit the body text of these templates under the Templates tab.

WhatsApp Automatic Templates

Available Automatic Templates​

Event KeyTemplate NameTriggering EventSupported VariablesAttachment
fee_paidFee Payment ReceiptWhen a fee payment is recorded{{parent_name}}, {{student_name}}, {{class}}, {{amount}}, {{school_name}}Auto-generated PDF Fee Receipt
feeFee Due ReminderAutomated or manual fee reminder broadcast{{parent_name}}, {{student_name}}, {{class}}, {{amount}}, {{due_date}}, {{school_name}}Optional
attendance_absentAbsent AlertWhen a student is marked Absent in daily attendance{{parent_name}}, {{student_name}}, {{class}}, {{date}}, {{school_name}}None
assignmentNew AssignmentWhen a teacher assigns a new subject assignment{{parent_name}}, {{student_name}}, {{class}}, {{subject}}, {{due_date}}, {{school_name}}Optional File
exam_scheduledExam ScheduledWhen an exam timetable is published{{parent_name}}, {{student_name}}, {{class}}, {{exam_name}}, {{date}}, {{school_name}}None
exam_resultResult PublishedWhen exam results/marks are published{{parent_name}}, {{student_name}}, {{class}}, {{exam_name}}, {{result}}, {{school_name}}None
holidayHoliday AnnouncementWhen a new school holiday is created{{parent_name}}, {{date}}, {{holiday_name}}, {{school_name}}None
leave_approvedStaff Leave ApprovedWhen a staff/teacher leave request is approved{{teacher_name}}, {{from_date}}, {{to_date}}, {{school_name}}None
leave_rejectedStaff Leave RejectedWhen a staff/teacher leave request is rejected{{teacher_name}}, {{from_date}}, {{to_date}}, {{school_name}}None
admission_welcomeAdmission WelcomeWhen a student's admission is confirmed{{parent_name}}, {{student_name}}, {{class}}, {{gr_number}}, {{school_name}}None
test_messageTest Connection MessageSent when testing the connection from the setup panel{{school_name}}None

[!NOTE] All recipient phone numbers are automatically normalized into international format (digits only, e.g., 919876543210) before sending.

5. Manual Templates & Custom Bulk Messaging​

Creating Manual Templates​

School Admins can create reusable custom templates under the Manual Templates tab for circulars, emergency announcements, event invitations, or fee notices:

  1. Go to Manual Templates tab -> Click Create Template.
  2. Enter Template Name (e.g., Annual Sports Day Circular), Category, and Body Text.
  3. Use custom variables in the body if desired (e.g., Dear {{recipient_name}}, ...).
  4. Click Save.

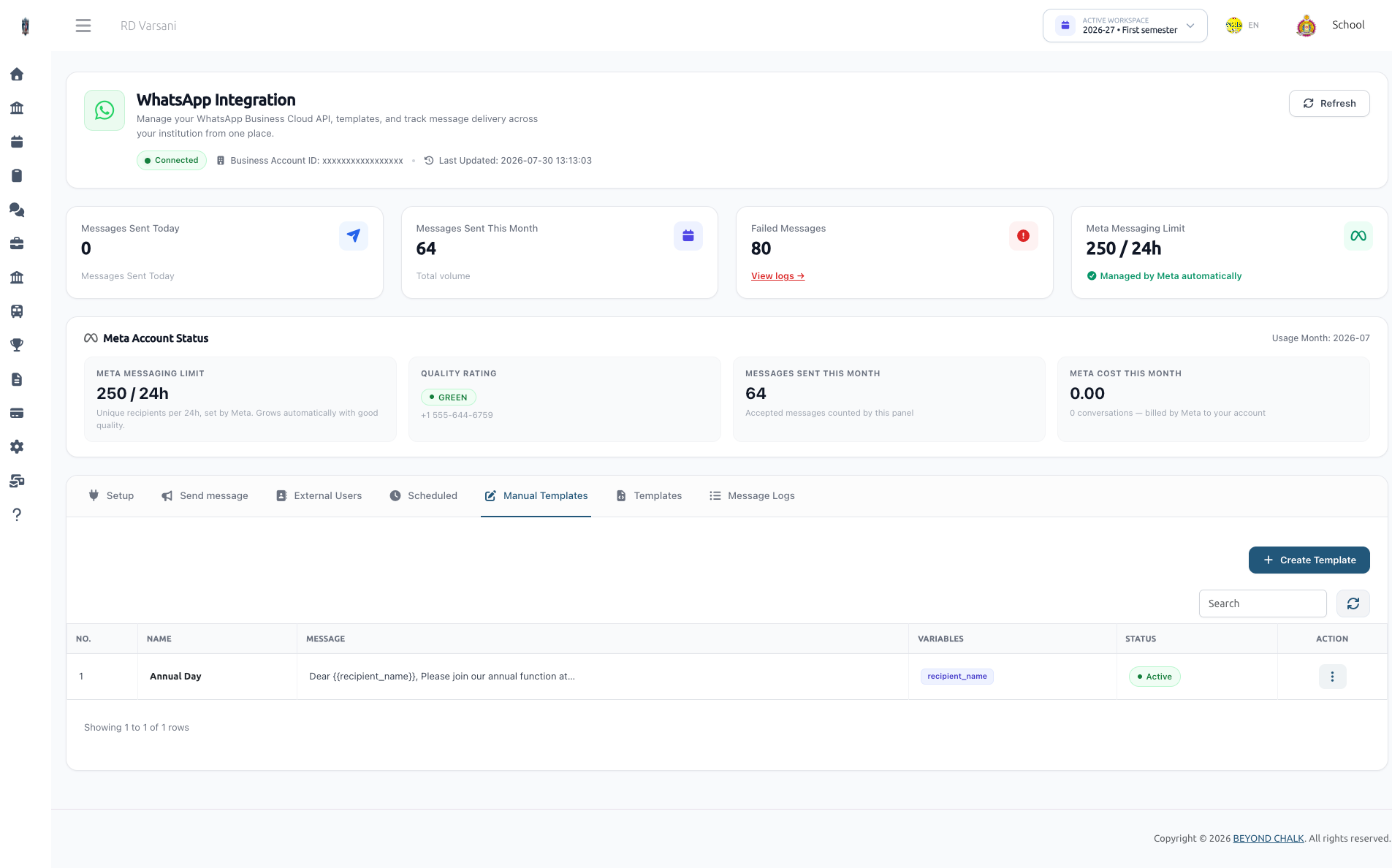

WhatsApp Manual Templates

Sending Bulk WhatsApp Messages​

To broadcast a message to multiple recipients:

  1. Navigate to Send Message (Bulk Send) tab.
  2. Select Template: Pick a Manual Template.
  3. Select Audience:
    • System Users: Filter by user role (Students, Guardians, Teachers, Staff) and select individuals or all users.
    • External Contacts: Select pre-saved contacts or upload a CSV on the fly.
  4. Custom Variables: Fill in variable values if required (e.g., event date, location).
  5. Attachment (Optional): Upload a document (.pdf, .docx, .xlsx) or image (.jpg, .png).
  6. Schedule Option:
    • Send Now: Messages are queued for immediate dispatch.
    • Schedule Once: Select future date & time.
    • Weekly / Monthly: Recurring automated dispatch.
  7. Click Send WhatsApp Message.

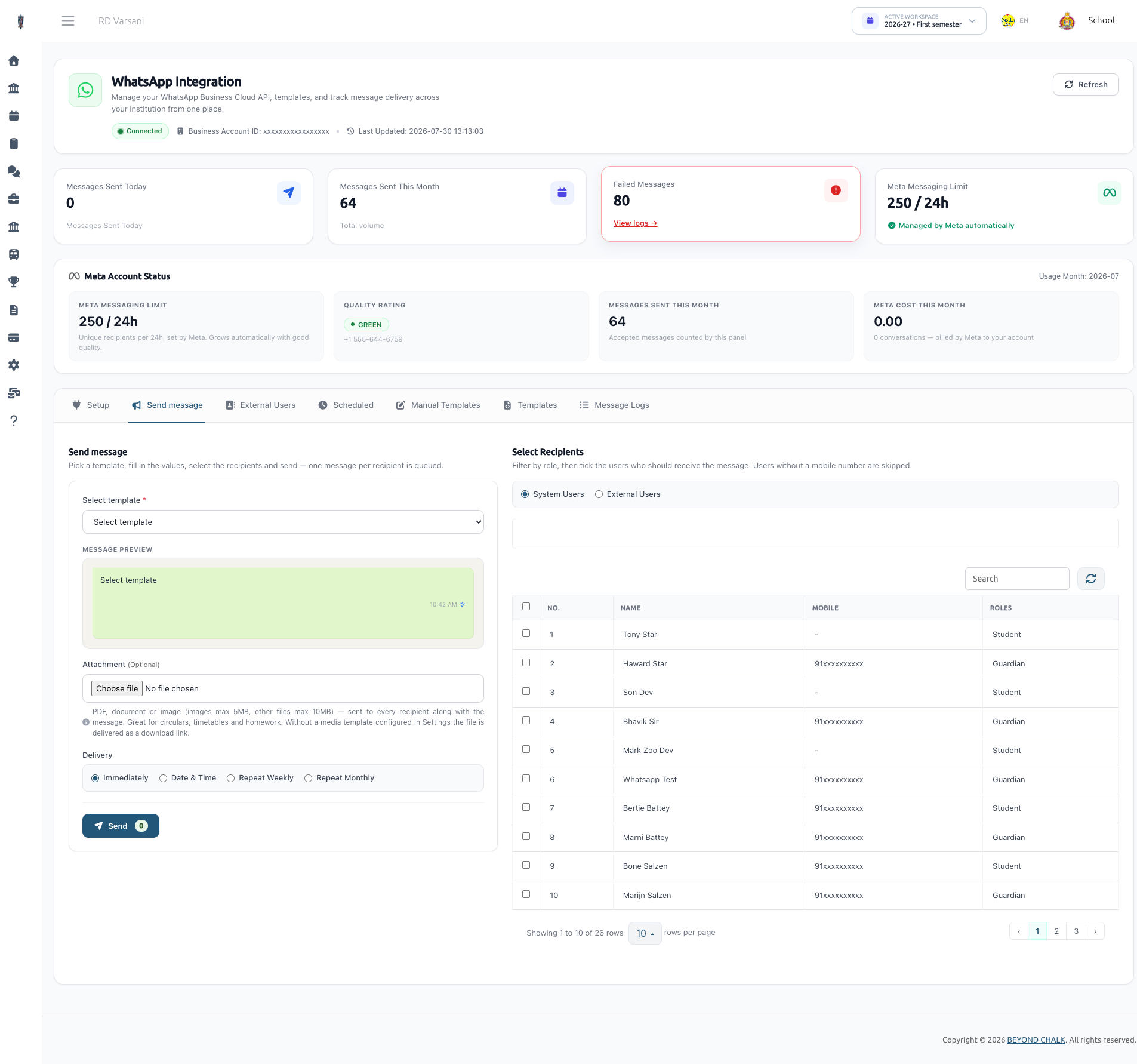

WhatsApp Send Message

6. External Contacts Directory & CSV Import​

The External Users tab provides a lightweight CRM directory for contacts outside the active registered student/staff list (such as alumni, prospective leads, vendors, or former staff).

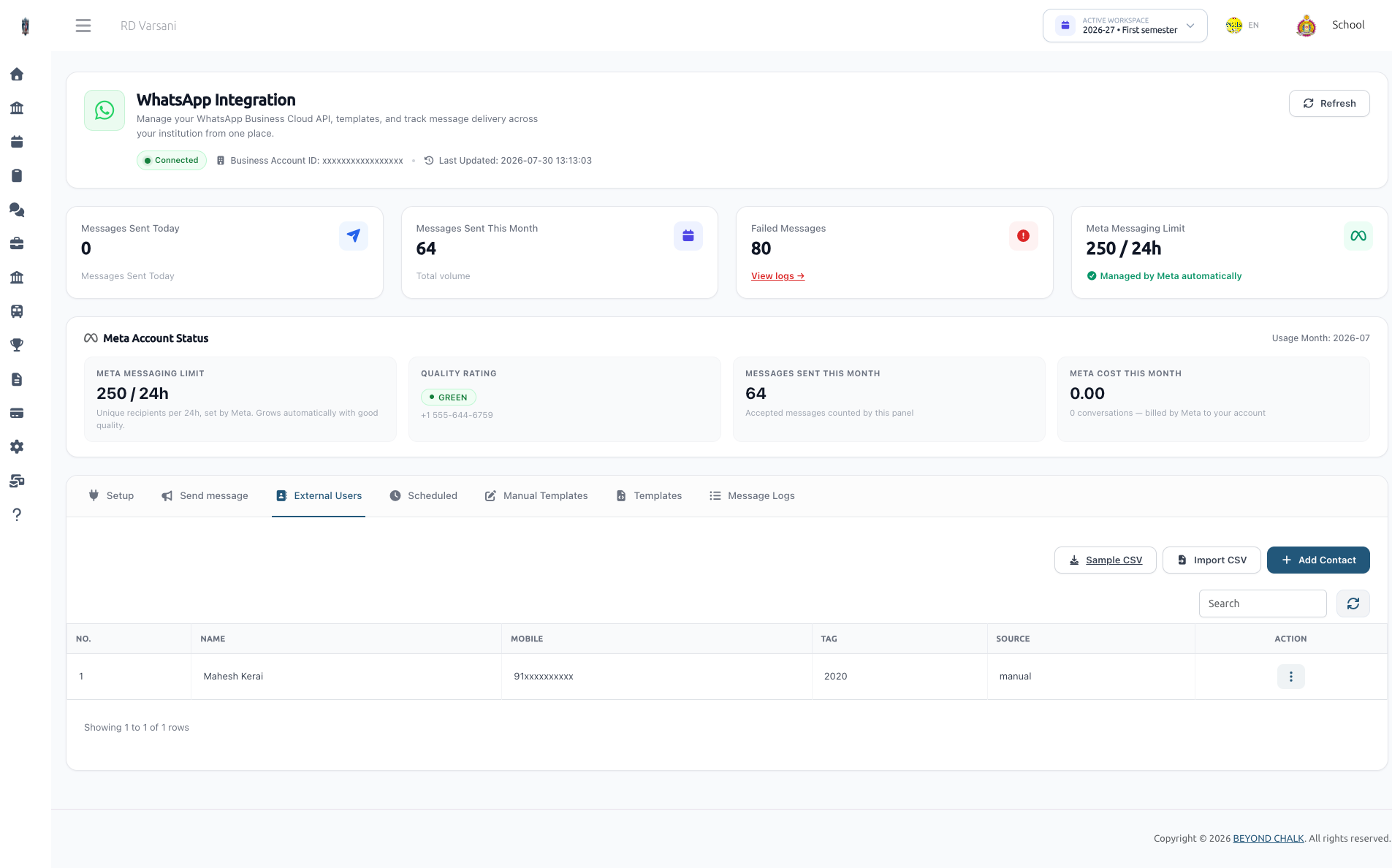

WhatsApp External Users

Managing Contacts​

  • Add Contact: Enter Name, Mobile Number (with country code), and an optional Tag (e.g. Alumni 2024, Admission Inquiry).
  • Tagging & Filtering: Easily select specific tag groups during bulk sends.

CSV Batch Import Semantics​

To import hundreds of contacts simultaneously:

  1. Click Import CSV.
  2. Upload a CSV file matching the format below.
  3. Specify a Tag to assign to all imported contacts.

CSV Format Specification​

mobile,name
919876543210,Ramesh Shah
918855885588,"Patel, Priya"
917000000001,Alumni 2020 Batch

[!TIP] Duplicate Protection & Upserting: Re-importing a CSV file with the same mobile numbers will update the contact's name and tag without creating duplicate records.

7. Scheduled & Recurring Messages​

View and manage all scheduled dispatches under the Scheduled tab.

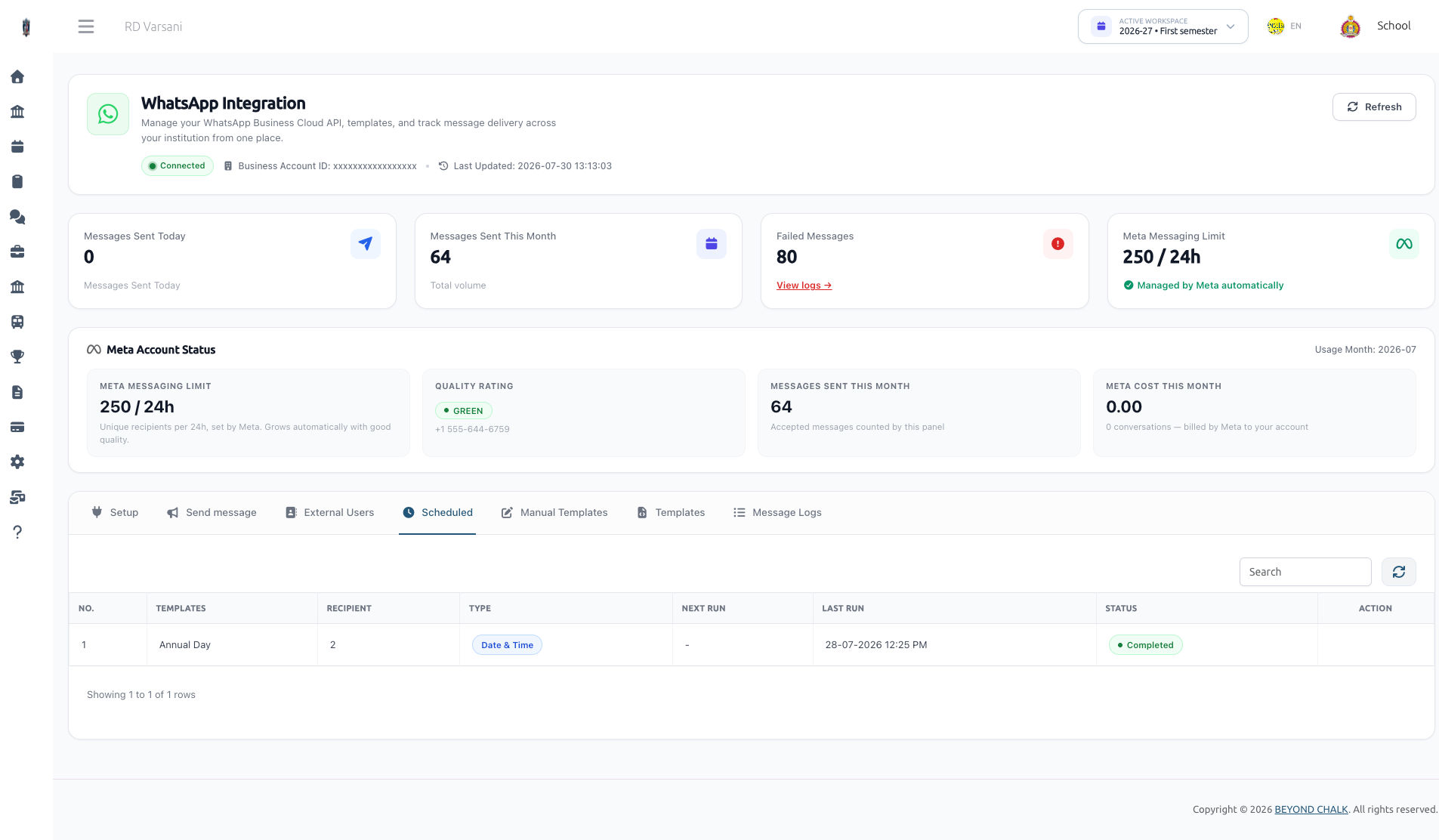

WhatsApp Schedule Log

Supported Schedule Types​

  • Once: Executes at the designated future date and time, then marks as completed.
  • Weekly: Executes automatically every 7 days from the start time.
  • Monthly: Executes automatically on the same day every month.

Managing Schedules​

  • Admins can view the next run date, recipient count, and status.
  • Pending schedules can be Cancelled at any time prior to execution.

8. Message Logs & Retry Mechanism​

Track every outbound WhatsApp message under the Message Logs tab.

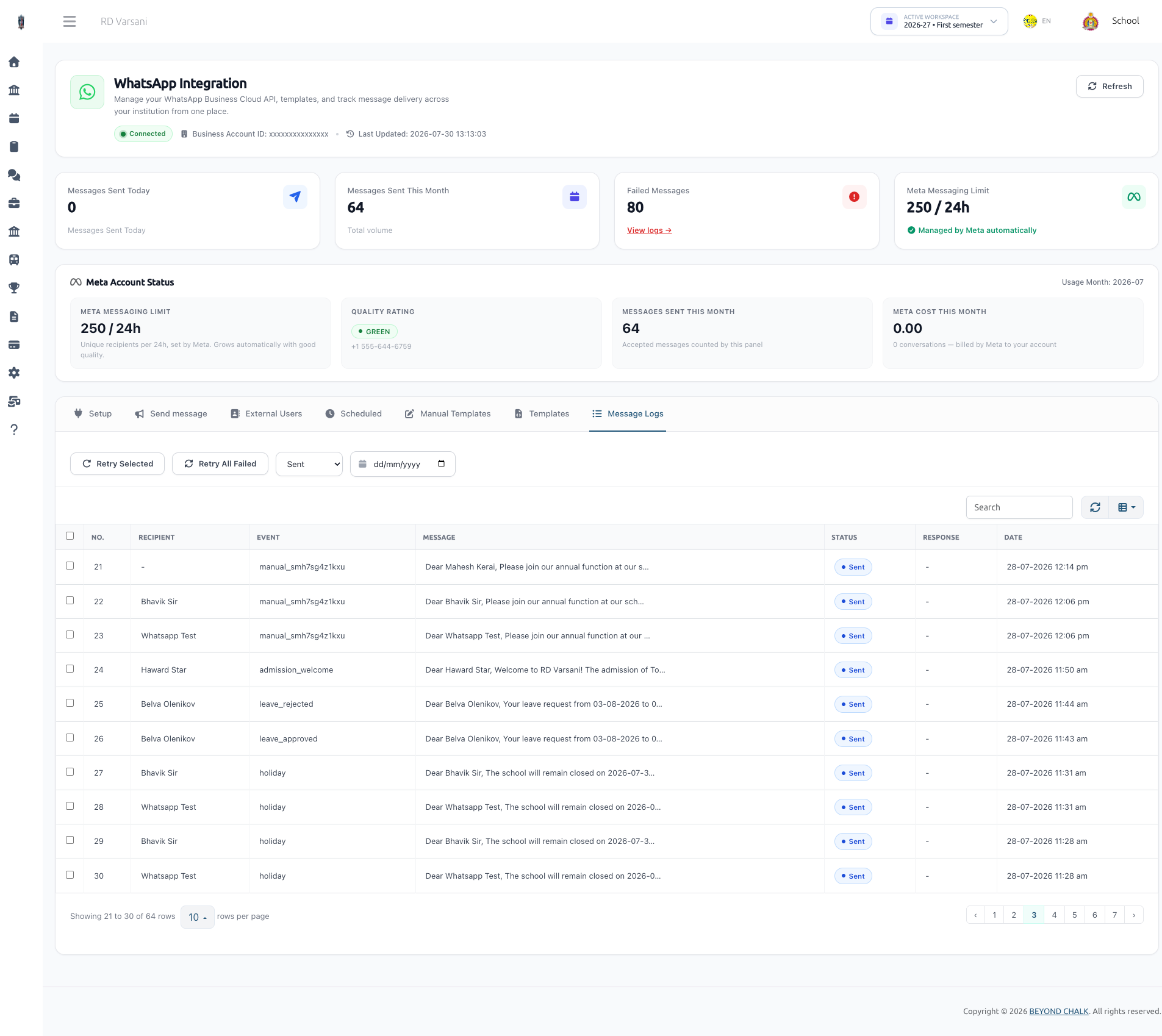

WhatsApp Message Logs

Status Indicators​

Status PillDescription
● PendingQueued in the system, awaiting worker execution.
● SentSuccessfully accepted and dispatched by Meta API.
● FailedDelivery failed (reason logged in response column).

Retrying Failed Messages​

If a message fails (e.g. due to temporary network downtime or Meta API throttling):

  1. Go to Message Logs.
  2. Filter status by Failed.
  3. Select specific failed logs and click Retry Selected, or click Retry All Failed.
  4. The system re-queues the exact rendered message while preserving the single log history record.

9. Server & Cron Configuration​

For proper asynchronous delivery and automated schedule execution, the server must have the Laravel Queue Worker and Cron Scheduler active.

1. Queue Worker Process​

All WhatsApp messages are dispatched asynchronously via SendWhatsAppJob to prevent slowing down web request response times.

Run worker daemon:

php artisan queue:work --tries=3 --timeout=60

(In production, manage php artisan queue:work using Supervisor or Systemd)

2. Cron Scheduler (Scheduled Messages)​

To process scheduled WhatsApp messages, add the standard Laravel cron job to your server's crontab:

* * * * * cd /path-to-your-project && php artisan schedule:run >> /dev/null 2>&1

Or execute the dedicated WhatsApp scheduled command directly via cron:

* * * * * cd /path-to-your-project && php artisan whatsapp:process-scheduled >> /dev/null 2>&1

10. Troubleshooting & Meta Error Codes​

Common Meta API Errors & Resolutions​

Error CodeError Message / CauseResolution
131030Recipient phone number not allowedThe recipient phone number is not registered on WhatsApp or, if using a Meta Test Phone Number, the recipient number has not been added to Meta's test numbers list.
132001Template does not exist in target languageVerify that the template name typed in panel settings matches the exact lowercase name in Meta Developer Manager and that the language code (e.g. en_US) matches.
132000Number of parameters does not matchEnsure your Meta Relay Template contains {{1}} in its body text.
131053Media upload error / Unable to fetch mediaEnsure your server's public storage disk is accessible over HTTPS so Meta servers can download attachments.
HTTP 401OAuthException / Invalid TokenYour Meta Permanent Access Token is expired, invalid, or missing required permissions (whatsapp_business_messaging). Regenerate token in Business Manager.

Summary Checklist for System Administrator​

  • Create Meta Developer App & WhatsApp Business Account.
  • Create 3 Utility Meta Relay Templates (school_message, school_message_document, school_message_image).
  • Configure Phone Number ID, WBA ID, and Access Token in School Admin Setup.
  • Test Connection and send Test Message.
  • Enable & customize Automatic Templates.
  • Ensure Queue Worker and Cron Scheduler are running on server.
