Supervisor Setup

This section guides you through setting up Supervisor for managing queue workers in your eLMS installation.

Supervisor is a process control system that allows you to monitor and control a number of processes on UNIX-like operating systems. It is essential for ensuring your queue workers stay running.

Queue Architecture​

The system uses two separate queues for optimal resource management:

QueuePurposeWorkersTimeout
defaultNotifications, emails, general jobs21 hour
video-encodingHLS video encoding (CPU intensive)12 hours

This separation ensures:

  • Video encoding doesn't block other jobs
  • Resource-intensive encoding runs with limited concurrency
  • Server stays responsive during heavy encoding

Prerequisites​

  • Ubuntu/Debian/CentOS VPS with PHP 8.3+ installed
  • Laravel application deployed
  • FFmpeg installed for video encoding (optional but recommended)

Finding Configuration Paths​

Do not assume /etc/supervisor/conf.d/ is used.

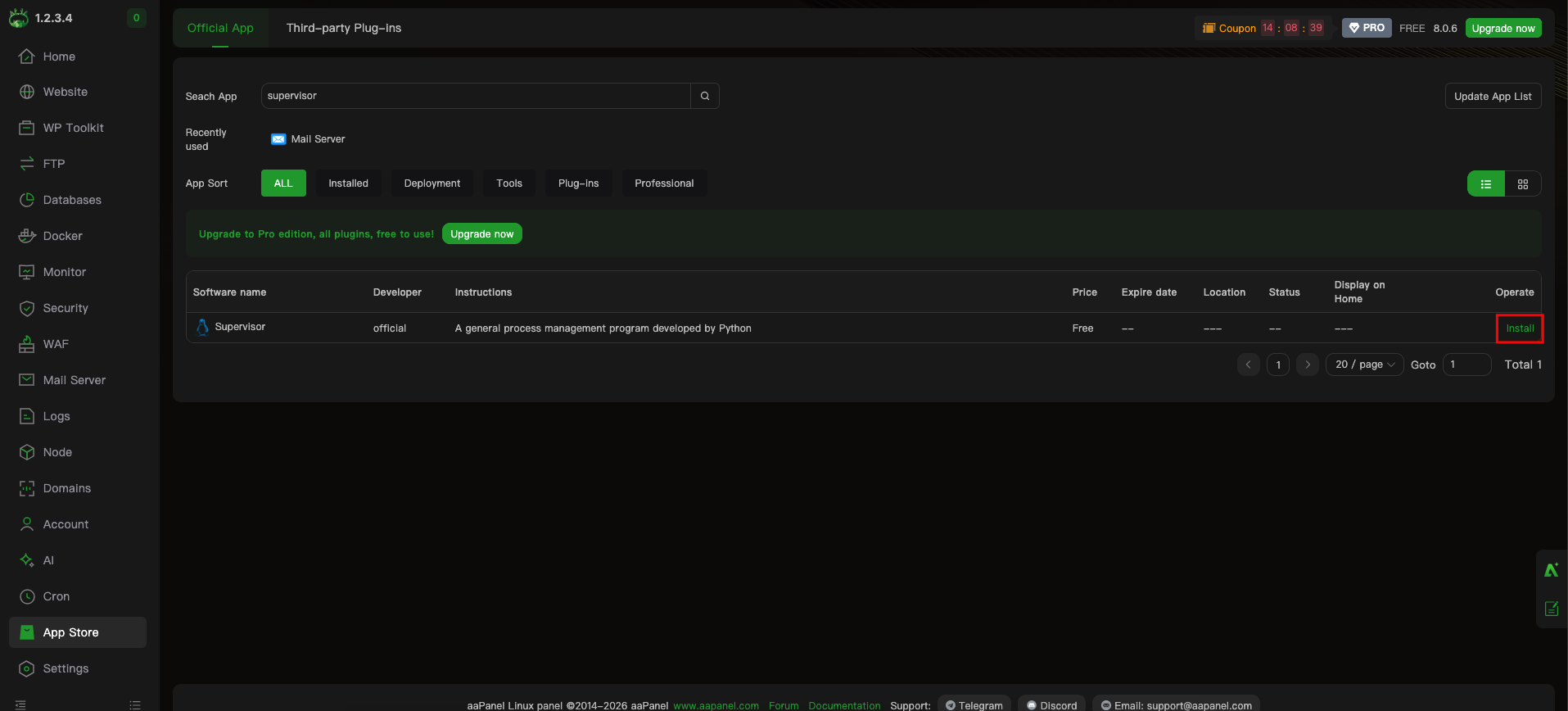

Hosting panels (aaPanel, cPanel, Plesk) often override this path and may only accept specific file extensions.

Before installing the worker configuration, find where supervisor actually looks for config files on your server.

Step 1: Find the Active Supervisor Configuration​

# Get the supervisor process ID
sudo supervisorctl pid

# Check which config file supervisor is using
ps -fp $(sudo supervisorctl pid)

Example output:

/usr/bin/python3 /usr/bin/supervisord -c /etc/supervisor/supervisord.conf

The file after -c is the main supervisor configuration file.

Step 2: Find the Include Directory​

# View the [include] section
sudo grep -A5 "\[include\]" /etc/supervisor/supervisord.conf

Example output (standard installation):

[include]
files = /etc/supervisor/conf.d/*.conf

Example output (aaPanel / BT Panel):

[include]
files = /www/server/panel/plugin/supervisor/profile/*.ini

This files = directive tells you where to place your worker config file and what extension it must have.

Installation​

1. Install Supervisor​

# Ubuntu/Debian
sudo apt-get update
sudo apt-get install supervisor

# CentOS/RHEL
sudo yum install epel-release
sudo yum install supervisor

2. Copy Configuration File​

You can find a template configuration file in your project at deployment/supervisor/elms-worker.conf.

# Copy the worker config to supervisor's config directory (adjust path as needed)
sudo cp /var/www/html/elms-worker.conf /etc/supervisor/conf.d/

# If your application is in a different directory, update the paths in the config file
sudo nano /etc/supervisor/conf.d/elms-worker.conf

3. Update Configuration​

Edit the copied configuration file and adjust:

  • command: Update the path /var/www/html/artisan to your actual application path
  • user: Change from www-data to your web server user (e.g., nginx, apache)
  • numprocs: Number of worker processes per queue
  • stdout_logfile: Update log file paths if needed

4. Start Supervisor​

# Reload supervisor configuration
sudo supervisorctl reread
sudo supervisorctl update

# Start all workers
sudo supervisorctl start all

5. Enable Supervisor on Boot​

sudo systemctl enable supervisor

Management Commands​

# View all process status
sudo supervisorctl status

# Start/Stop/Restart all workers
sudo supervisorctl start all
sudo supervisorctl stop all
sudo supervisorctl restart all

# Reload configuration (after changing .conf file)
sudo supervisorctl reread
sudo supervisorctl update

Troubleshooting​

Workers not showing in status​

  • Check if the config file is in the correct directory found in "Finding Configuration Paths".
  • Check if the file extension matches what Supervisor expects (.conf vs .ini).
  • Run sudo supervisorctl avail to see if Supervisor detects the config but hasn't loaded it.

Video Encoding Jobs Failing​

  • Check FFmpeg installation: ffmpeg -version
  • Check worker logs: sudo tail -f /path/to/your/logs/worker-video.log
  • Increase memory limit or timeout in the config if large videos fail.

Permission Denied​

  • Ensure the user in the config file matches the owner of your web project files.
  • Check logs: sudo tail -50 /var/log/supervisor/supervisord.log
